A box for the Vulpes controller that can be 3D-printed.
5 Commits 1 Branch 0 Tags 4 MiB
G-code 99.7%
OpenSCAD 0.3%
main
Go to file
mattbk 983d7f8cbb Clarify naming.
2024-01-07 11:27:44 -06:00
docs Clarify naming. 2024-01-07 11:27:44 -06:00
camferCube.scad Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
LICENSE Initial commit 2024-01-07 10:22:38 -06:00
README.md Clarify naming. 2024-01-07 11:27:44 -06:00
screwShapes1.scad Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
UniBox by fjkraan Download free STL model Printables.com.pdf Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
UniBox2.scad Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
UniBox2Bottom.stl Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
UniBox2Panel.stl Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
UniBox2Top.stl Init with original UniBox from fjkraan on printables.com. 2024-01-07 10:31:05 -06:00
vulpes_v01_box_headers-0.2-2h17m-1-6.gcode Clarify naming. 2024-01-07 11:27:44 -06:00
vulpes_v01_box_headers.3mf Clarify naming. 2024-01-07 11:27:44 -06:00
vulpes_v01_box_headers.scad Clarify naming. 2024-01-07 11:27:44 -06:00
vulpes_v01_box_headers.stl Clarify naming. 2024-01-07 11:27:44 -06:00

README.md

vulpes_box

A box for the Vulpes controller that can be 3D-printed.

Based on "UniBox" by fjkraan at Printables, which was shared under a Creative Commons (4.0 International License) Attribution license.

Designed in OpenSCAD. It is paramaterized.

Filenames:

  • vulpes_v01 board version number
  • headers for board assembled with headers

Related:

Alt text

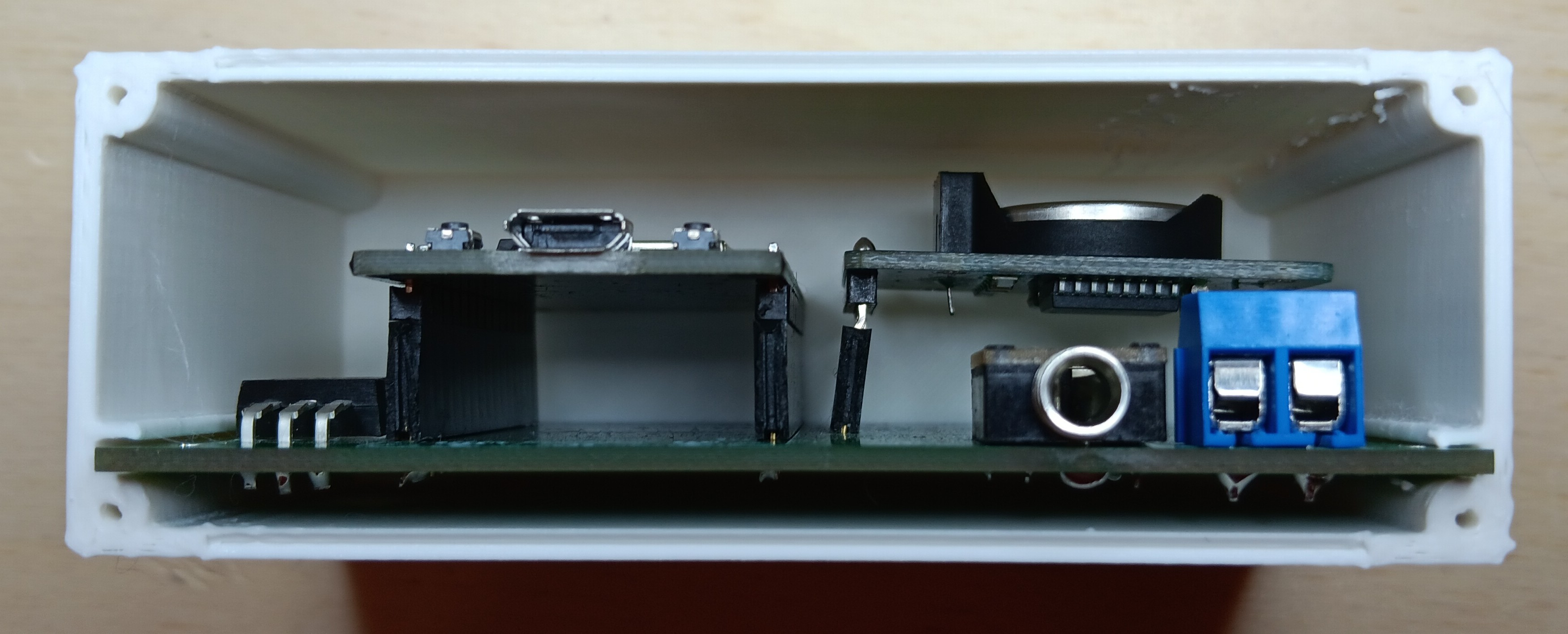

Photo of 3d-printed box with PCB held in a slot.

Photo of same box, with cover on and all openings lined up.
