Clarify naming.

2024-01-07 11:27:44 -06:00 · 2024-01-07 11:27:44 -06:00 · 983d7f8cbb
commit 983d7f8cbb
parent 1309ca27b4
8 changed files with 7 additions and 3 deletions
--- a/README.md
+++ b/README.md
@ -8,12 +8,16 @@ license.

 Designed in OpenSCAD. It is paramaterized.

+Filenames:
+- `vulpes_v01` board version number
+- `headers` for board assembled with headers
+
 Related:
 - [ESP32-based radio controller for radio orienteering/ARDF](https://amiok.net/gitea/W1CDN/vulpes)
 - [Vulpes Radio Orienteering Controller](https://w1cdn.net/projects/vulpes-radio-orienteering-controller/)

-![Alt text](docs/vulpes_box_openscad.png "OpenSCAD")
+![Alt text](docs/vulpes_v01_box_headers_openscad.png "OpenSCAD")

-![Photo of 3d-printed box with PCB held in a slot.](docs/vulpes_box_photo_front_open.jpg "PCB in place")

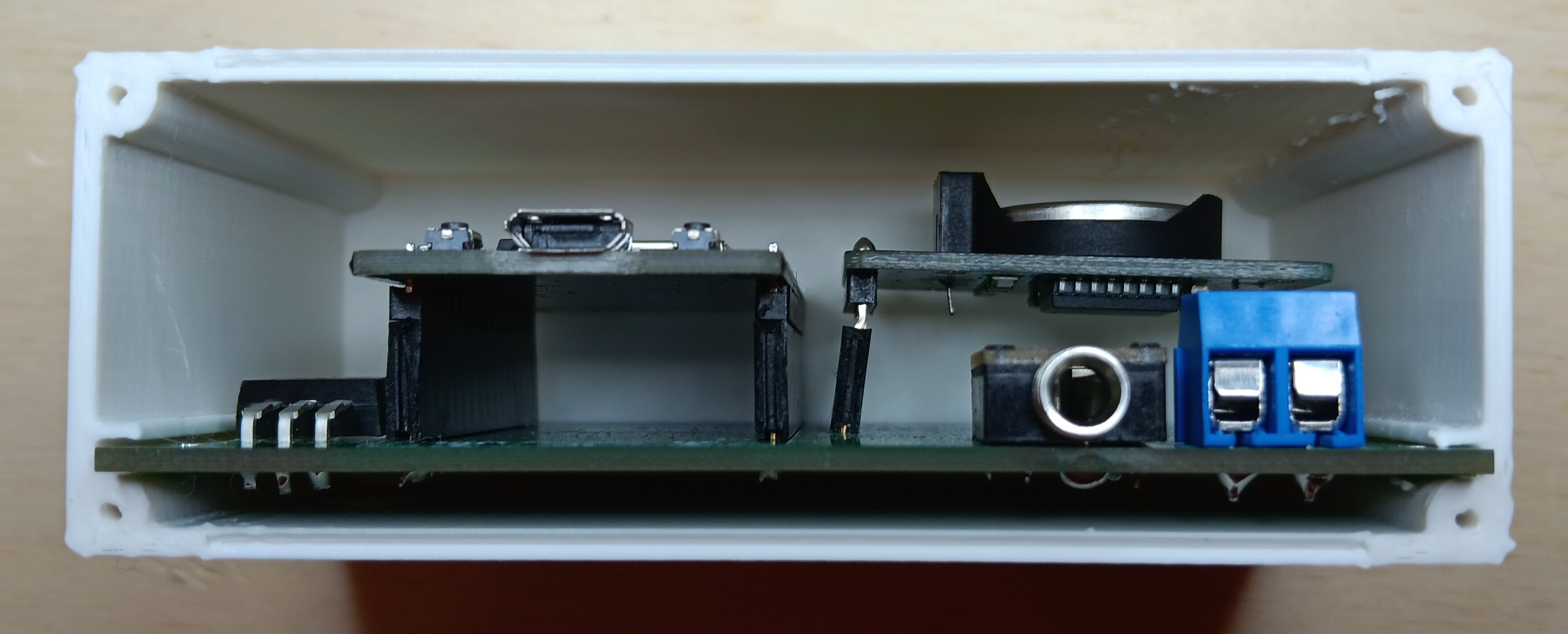

+![Photo of 3d-printed box with PCB held in a slot.](docs/vulpes_v01_box_headers_photo_front_open.jpg "PCB in place")

-![Photo of same box, with cover on and all openings lined up.](docs/vulpes_box_photo_front.jpg "Cover in place")
+![Photo of same box, with cover on and all openings lined up.](docs/vulpes_v01_box_headers_photo_front.jpg "Cover in place")
--- a/docs/vulpes_V01_box_headers_photo_front.jpg
+++ b/docs/vulpes_V01_box_headers_photo_front.jpg
--- a/docs/vulpes_v01_box_headers_openscad.png
+++ b/docs/vulpes_v01_box_headers_openscad.png
--- a/docs/vulpes_v01_box_headers_photo_front_open.jpg
+++ b/docs/vulpes_v01_box_headers_photo_front_open.jpg
--- a/vulpes_v01_box_headers-0.2-2h17m-1-6.gcode
+++ b/vulpes_v01_box_headers-0.2-2h17m-1-6.gcode
--- a/vulpes_v01_box_headers.3mf
+++ b/vulpes_v01_box_headers.3mf
--- a/vulpes_v01_box_headers.scad
+++ b/vulpes_v01_box_headers.scad
--- a/vulpes_v01_box_headers.stl
+++ b/vulpes_v01_box_headers.stl
