Handle breaking errors in kiss_and_db.py #38

Merged

W1CDN merged 9 commits from fix-kiss into main 2023-12-13 20:20:59 -06:00

Conversation 15 Commits 9 Files Changed 4

+101 -59

W1CDN commented 2023-08-26 19:26:28 -05:00

Owner

Copy link

Copy source

Closes #37.

Started with an example mixed together from https://github.com/python-aprs/aprs3 and https://github.com/python-aprs/kiss3/blob/main/examples/tcp_async.py. The await was missing from the first example, so beware.

Closes #37. Started with an example mixed together from https://github.com/python-aprs/aprs3 and https://github.com/python-aprs/kiss3/blob/main/examples/tcp_async.py. The `await` was missing from the first example, so beware.

W1CDN added the bug label 2023-08-26 19:26:28 -05:00

W1CDN self-assigned this 2023-08-26 19:26:28 -05:00

W1CDN added 1 commit 2023-08-26 19:26:30 -05:00

Stub out fix-kiss. e1211fe108

W1CDN commented 2023-08-26 19:35:20 -05:00

Author

Owner

Copy link

Copy source

Doesn't seem like test_async.py is picking up anything from dw, even though dw reports the connection.

Doesn't seem like `test_async.py` is picking up anything from dw, even though dw reports the connection.

W1CDN added 1 commit 2023-12-10 13:44:57 -06:00

Commit deployed changes from a while back. dc7d4ed8a3

W1CDN commented 2023-12-10 13:59:33 -06:00

Author

Owner

Copy link

Copy source

Got local environment going again and maybe I'll have better luck debugging this. May create another branch to try readme example at https://github.com/python-aprs/aprs3.

Got local environment going again and maybe I'll have better luck debugging this. May create another branch to try readme example at https://github.com/python-aprs/aprs3.

W1CDN commented 2023-12-10 17:08:31 -06:00

Author

Owner

Copy link

Copy source

Well there's your problem:
https://owenduffy.net/blog/?p=2969

Status

The host cannot ascertain the TNC status, there are no KISS commands that have a response, much less any that provide any known information.

Equally, the TNC cannot ascertain host status.

Well there's your problem: https://owenduffy.net/blog/?p=2969 ``` Status The host cannot ascertain the TNC status, there are no KISS commands that have a response, much less any that provide any known information. Equally, the TNC cannot ascertain host status. ```

W1CDN commented 2023-12-10 19:45:15 -06:00

Author

Owner

Copy link

Copy source

Wes asked about keepalive on the TCP connection, and I can't see anything like that in the aprs3/kiss3 code, but that doesn't mean it's not another level down from where I'm looking.

But I'm wondering if I could send an empty packet (or one with no path) every x minutes and have that keep the connection alive?

[Wes asked](https://mastodon.radio/@w8wjb@mastodon.hams.social/111558683524663931) about keepalive on the TCP connection, and I can't see anything like that in the aprs3/kiss3 code, but that doesn't mean it's not another level down from where I'm looking. But I'm wondering if I could send an empty packet (or one with no path) every x minutes and have that keep the connection alive?

W1CDN added 1 commit 2023-12-10 21:04:38 -06:00

Flail around. 307c1fcd86

matt commented 2023-12-11 11:32:45 -06:00

First-time contributor

Copy link

Copy source

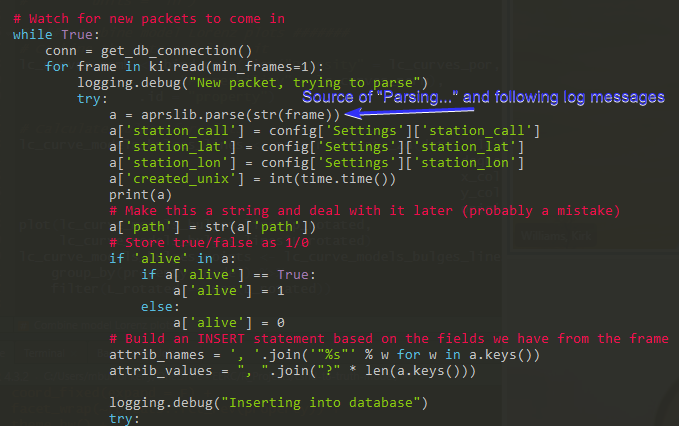

/home/pi/.local/lib/python3.7/site-packages/kiss/classes.py

class TCPKISS(KISS):
    """KISS TCP Class."""

    def __init__(self, host: str, port: int, strip_df_start: bool = False):
        super().__init__(strip_df_start)
        self.address = (host, int(port))

    def stop(self) -> None:
        self.protocol.transport.close()

    def start(self, **kwargs: Any) -> None:
        """
        Initializes the KISS device and commits configuration.
        """
        _, self.protocol = self.loop.run_until_complete(
            kiss.create_tcp_connection(
                *self.address,
                protocol_kwargs={"decoder": self.decoder},
            ),
        )
        self.loop.run_until_complete(self.protocol.connection_future)
        self._write_defaults(**kwargs)

 ` /home/pi/.local/lib/python3.7/site-packages/kiss/classes.py` ``` class TCPKISS(KISS): """KISS TCP Class.""" def __init__(self, host: str, port: int, strip_df_start: bool = False): super().__init__(strip_df_start) self.address = (host, int(port)) def stop(self) -> None: self.protocol.transport.close() def start(self, **kwargs: Any) -> None: """ Initializes the KISS device and commits configuration. """ _, self.protocol = self.loop.run_until_complete( kiss.create_tcp_connection( *self.address, protocol_kwargs={"decoder": self.decoder}, ), ) self.loop.run_until_complete(self.protocol.connection_future) self._write_defaults(**kwargs) ```


73 KiB

W1CDN commented 2023-12-11 12:13:07 -06:00

Author

Owner

Copy link

Copy source

The older version of kiss does not use asyncio to handle the TCP connection: https://github.com/ampledata/kiss/blob/5c8baba2ceaa97a57fd93cab24a502011fd39e85/kiss/classes.py#L205

I don't know if switching back to this will fix the connection or break other things.

If this import socket refers to this, I think keepalive is included? https://docs.python.org/3/library/socket.html

But I can't seem to pip3 install the older kiss and aprs packages.

The older version of `kiss` does not use `asyncio` to handle the TCP connection: https://github.com/ampledata/kiss/blob/5c8baba2ceaa97a57fd93cab24a502011fd39e85/kiss/classes.py#L205 I don't know if switching back to this will fix the connection or break other things. If this `import socket` refers to this, I think keepalive is included? https://docs.python.org/3/library/socket.html But I can't seem to `pip3 install` the older `kiss` and `aprs` packages.

matt commented 2023-12-11 14:54:19 -06:00

First-time contributor

Copy link

Copy source

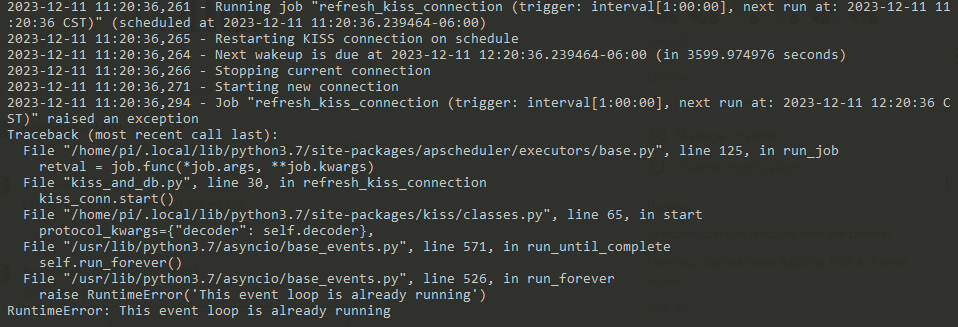

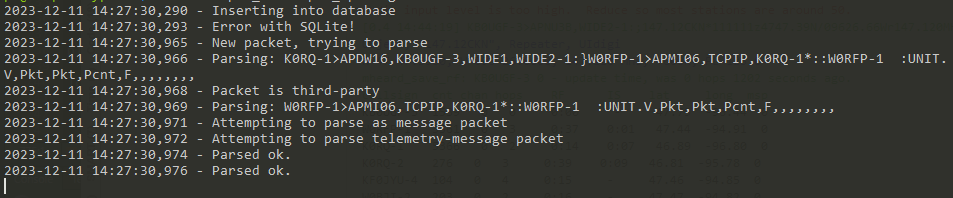

Started 11:50, seems to have quit/hung ~14:27 CST.
Seems hung after this. Packets came in after this, but nothing in log.
Is it telemetry that is causing issues?
This is where I am using aprslib instead of aprs3 for parsing into tabular format.

Started 11:50, seems to have quit/hung ~14:27 CST. Seems hung after this. Packets came in after this, but nothing in log. Is it telemetry that is causing issues? This is where I am using `aprslib` instead of `aprs3` for parsing into tabular format.


51 KiB


84 KiB

matt commented 2023-12-11 15:30:08 -06:00

First-time contributor

Copy link

Copy source

Was fooling around with packages earlier and ran into this again. Had to reinstall stuff in right order, but first delete some things.

>~/.local/lib/python3.7/site-packages $ rm -R kiss-7.0.0.dist-info/
>~/.local/lib/python3.7/site-packages $ rm -R kiss3-8.0.0.dist-info/
>~/.local/lib/python3.7/site-packages $ rm -R aprs3-8.0.0.post1.dist-info/
>~/.local/lib/python3.7/site-packages $ pip3 install aprs3 --no-cache-dir

Was fooling around with packages earlier and ran into this again. Had to reinstall stuff in right order, but first delete some things. ``` >~/.local/lib/python3.7/site-packages $ rm -R kiss-7.0.0.dist-info/ >~/.local/lib/python3.7/site-packages $ rm -R kiss3-8.0.0.dist-info/ >~/.local/lib/python3.7/site-packages $ rm -R aprs3-8.0.0.post1.dist-info/ >~/.local/lib/python3.7/site-packages $ pip3 install aprs3 --no-cache-dir ```

W1CDN commented 2023-12-11 21:40:01 -06:00

Author

Owner

Copy link

Copy source

Turned off periodic restart after the messages this afternoon, see also #37.

Turned off periodic restart after the messages this afternoon, see also #37.

matt commented 2023-12-12 09:19:19 -06:00

First-time contributor

Copy link

Copy source

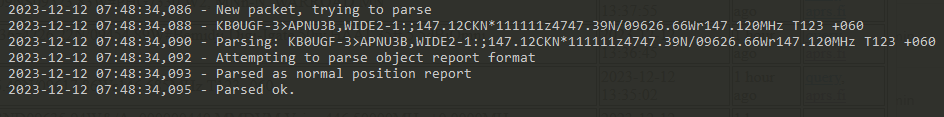

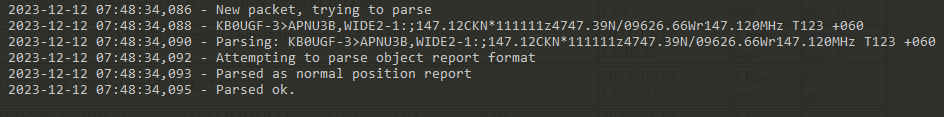

Same thing happening this morning. Breaking in between "Parsed ok" and when I attempt to log the

Also need to think about what characters may need to be escaped for SQLite.

Same thing happening this morning. Breaking in between "Parsed ok" and when I attempt to log the  Also need to think about what characters may need to be escaped for SQLite.


35 KiB

matt commented 2023-12-12 14:47:36 -06:00

First-time contributor

Copy link

Copy source

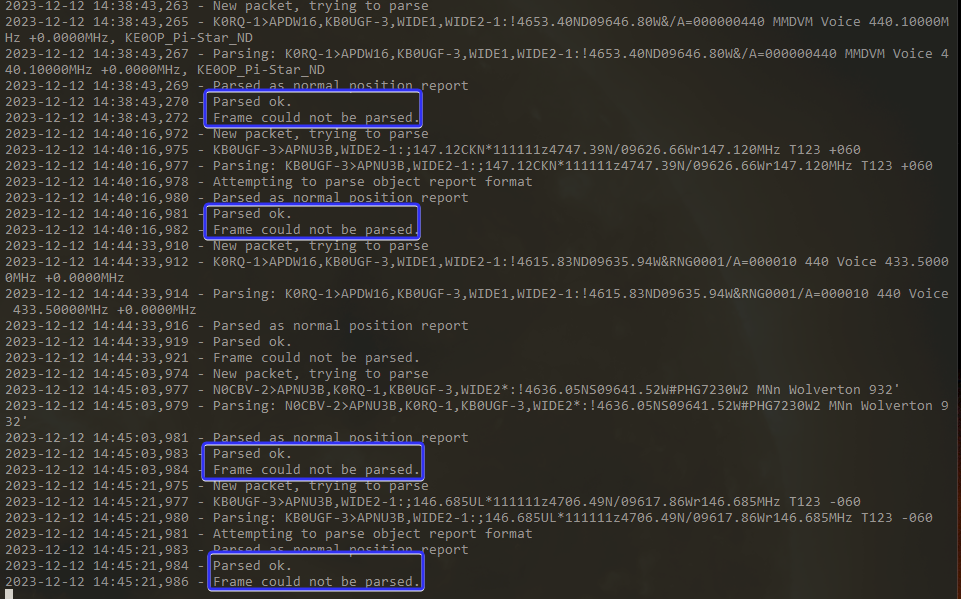

Now seeing this?

Parsed ok.
Frame could not be parsed.

Deployed code is a bit ahead what is in the repo right now.

Adding more errors (I think): https://www.freecodecamp.org/news/python-print-exception-how-to-try-except-print-an-error/

Now seeing this? ``` Parsed ok. Frame could not be parsed. ```  Deployed code is a bit ahead what is in the repo right now. Adding more errors (I think): https://www.freecodecamp.org/news/python-print-exception-how-to-try-except-print-an-error/


319 KiB

matt commented 2023-12-12 15:42:38 -06:00

First-time contributor

Copy link

Copy source

EDIT: Doesn't need to be? https://digi.w1cdn.net/aprs_api/packets?from=N0CBV-2

Example with a single quote? Can it be escaped?
N0CBV-2>APNU3B,KB0UGF-3,WIDE2-1:!4636.05NS09641.52W#PHG7230W2 MNn Wolverton 932'
https://stackoverflow.com/questions/3151146/replace-the-single-quote-character-from-a-string

EDIT: Doesn't need to be? https://digi.w1cdn.net/aprs_api/packets?from=N0CBV-2 Example with a single quote? Can it be escaped? `N0CBV-2>APNU3B,KB0UGF-3,WIDE2-1:!4636.05NS09641.52W#PHG7230W2 MNn Wolverton 932'` https://stackoverflow.com/questions/3151146/replace-the-single-quote-character-from-a-string

matt referenced this pull request 2023-12-12 17:02:07 -06:00

KISS connection seems unstable #37

matt commented 2023-12-12 17:05:13 -06:00

First-time contributor

Copy link

Copy source

Frame could not be parsed. is an overarching log message I added for failure and includes everything from parsing to DB insertion. It's not very helpful.

• this code needs to be restructured, it shouldn't keep trying to put stuff in the database once the packet isn't parsed. Use try except else

https://amiok.net/gitea/W1CDN/aprs_tool/src/branch/fix-kiss/kiss_and_db.py#L75

try:
                try:
                    a = aprslib.parse(str(frame))
                except Exception as error:
                    logging.error("Error with aprslib:", error)
                a['station_call'] = config['Settings']['station_call']
                a['station_lat'] = config['Settings']['station_lat']
                a['station_lon'] = config['Settings']['station_lon']
                a['created_unix'] = int(time.time())

                # Make this a string and deal with it later (probably a mistake)
                a['path'] = str(a['path'])
                if 'subpacket' in a:
                    a['subpacket'] = str(a['subpacket'])
                #logging.debug(a['path'])
                # Store true/false as 1/0
                if 'alive' in a:
                    if a['alive'] == True:
                        a['alive'] = 1
                    else:
                        a['alive'] = 0
                # Build an INSERT statement based on the fields we have from the frame
                attrib_names = ', '.join('"%s"' % w for w in a.keys())
                attrib_values = ", ".join("?" * len(a.keys()))
                logging.debug(attrib_names)

`Frame could not be parsed.` is an overarching log message I added for failure and includes everything from parsing to DB insertion. It's not very helpful. - [x] this code needs to be restructured, it shouldn't keep trying to put stuff in the database once the packet isn't parsed. Use `try except else` https://amiok.net/gitea/W1CDN/aprs_tool/src/branch/fix-kiss/kiss_and_db.py#L75 ``` try: try: a = aprslib.parse(str(frame)) except Exception as error: logging.error("Error with aprslib:", error) a['station_call'] = config['Settings']['station_call'] a['station_lat'] = config['Settings']['station_lat'] a['station_lon'] = config['Settings']['station_lon'] a['created_unix'] = int(time.time()) # Make this a string and deal with it later (probably a mistake) a['path'] = str(a['path']) if 'subpacket' in a: a['subpacket'] = str(a['subpacket']) #logging.debug(a['path']) # Store true/false as 1/0 if 'alive' in a: if a['alive'] == True: a['alive'] = 1 else: a['alive'] = 0 # Build an INSERT statement based on the fields we have from the frame attrib_names = ', '.join('"%s"' % w for w in a.keys()) attrib_values = ", ".join("?" * len(a.keys())) logging.debug(attrib_names) ```

W1CDN added 2 commits 2023-12-12 22:07:33 -06:00

Flail. e7002c712c

Try to catch exceptions. 50085de7db

matt commented 2023-12-13 09:19:35 -06:00

First-time contributor

Copy link

Copy source

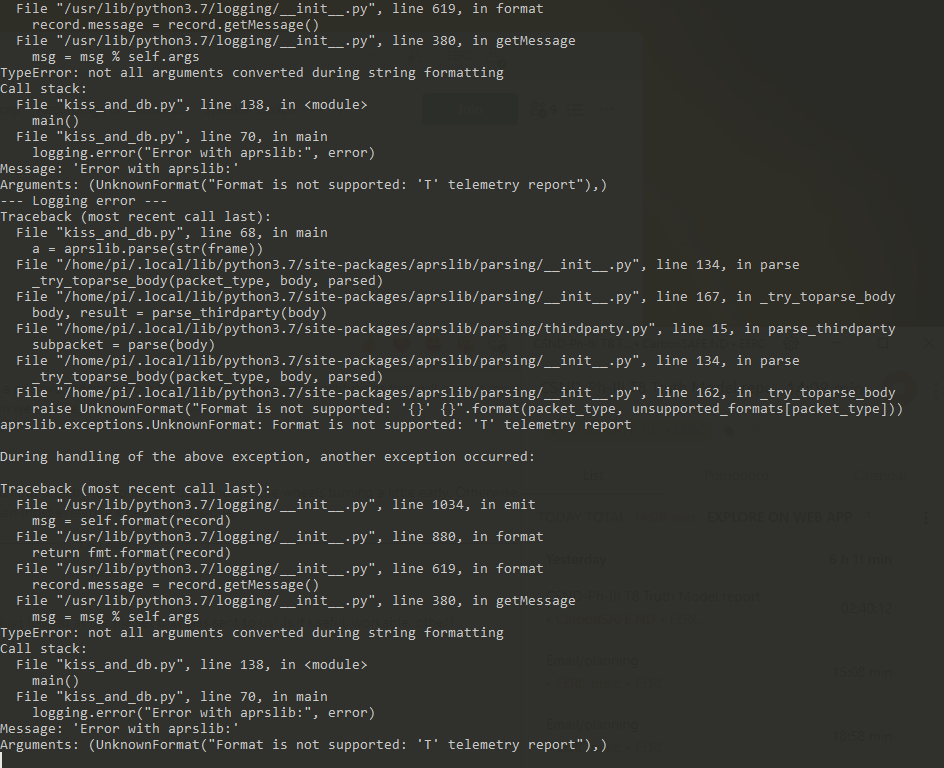

Logging errors is not working correctly. These show up in the screen -r output, but not in the log file:

Logging errors is not working correctly. These show up in the `screen -r` output, but not in the log file:


137 KiB

matt changed title from Stub out fix-kiss. to Handle breaking errors in kiss_and_db.py 2023-12-13 09:35:56 -06:00

W1CDN added 1 commit 2023-12-13 10:13:33 -06:00

Working snapshot. 26b4081720

W1CDN added 2 commits 2023-12-13 10:24:25 -06:00

Align constants and schema. 79da9de6f7

Add header_raw field. 1894de5d86

W1CDN added 1 commit 2023-12-13 10:40:38 -06:00

Log errors in more detail. 25bffd9b61

W1CDN commented 2023-12-13 10:48:07 -06:00

Author

Owner

Copy link

Copy source

Now that errors are being logged in more detail, I can let this run and see if it keeps working. Then deal with other additions in a different branch.

Now that errors are being logged in more detail, I can let this run and see if it keeps working. Then deal with other additions in a different branch.

W1CDN merged commit 4439ae680e into main 2023-12-13 20:20:59 -06:00

W1CDN deleted branch fix-kiss 2023-12-13 20:20:59 -06:00

W1CDN referenced this issue from a commit 2023-12-13 20:21:01 -06:00

Merge pull request 'Handle breaking errors in kiss_and_db.py' (#38) from fix-kiss into main
