Monitor power and shut down if voltage gets below limit in webform (software) #49

New Issue
Open
opened 2023-09-17 12:01:50 -05:00 by W1CDN · 1 comment
W1CDN commented 2023-09-17 12:01:50 -05:00
Owner
Copy Link
Copy Source

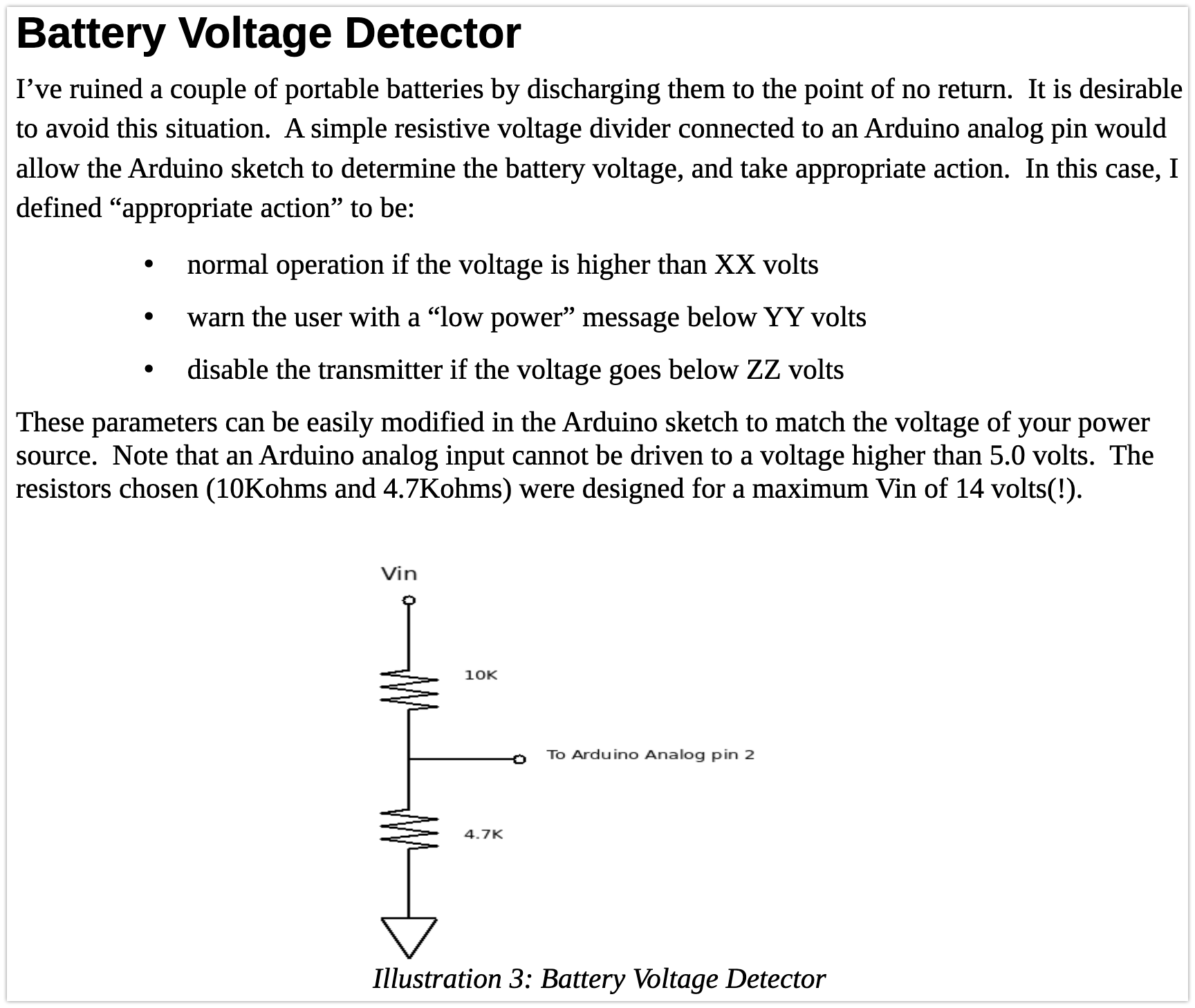

KB1OIQ has discharge protection in his arduino controller:

https://master.dl.sourceforge.net/project/kb1oiq-ham-radio-projects/80m_ardf/80m_fox.pdf?viasf=1

If I add a terminal for controller power via VIN (https://olddocs.zerynth.com/latest/official/board.zerynth.doit_esp32/docs/index.html#power), I think voltage can be monitored. Can let user do the math on what voltage to not drop below, and enter that value into a field on the webform.

Quick search suggests that I would still need a voltage divider circuit (for a different board, but probably similar): https://forum.arduino.cc/t/monitoring-vin-on-a-esp32/894785/4

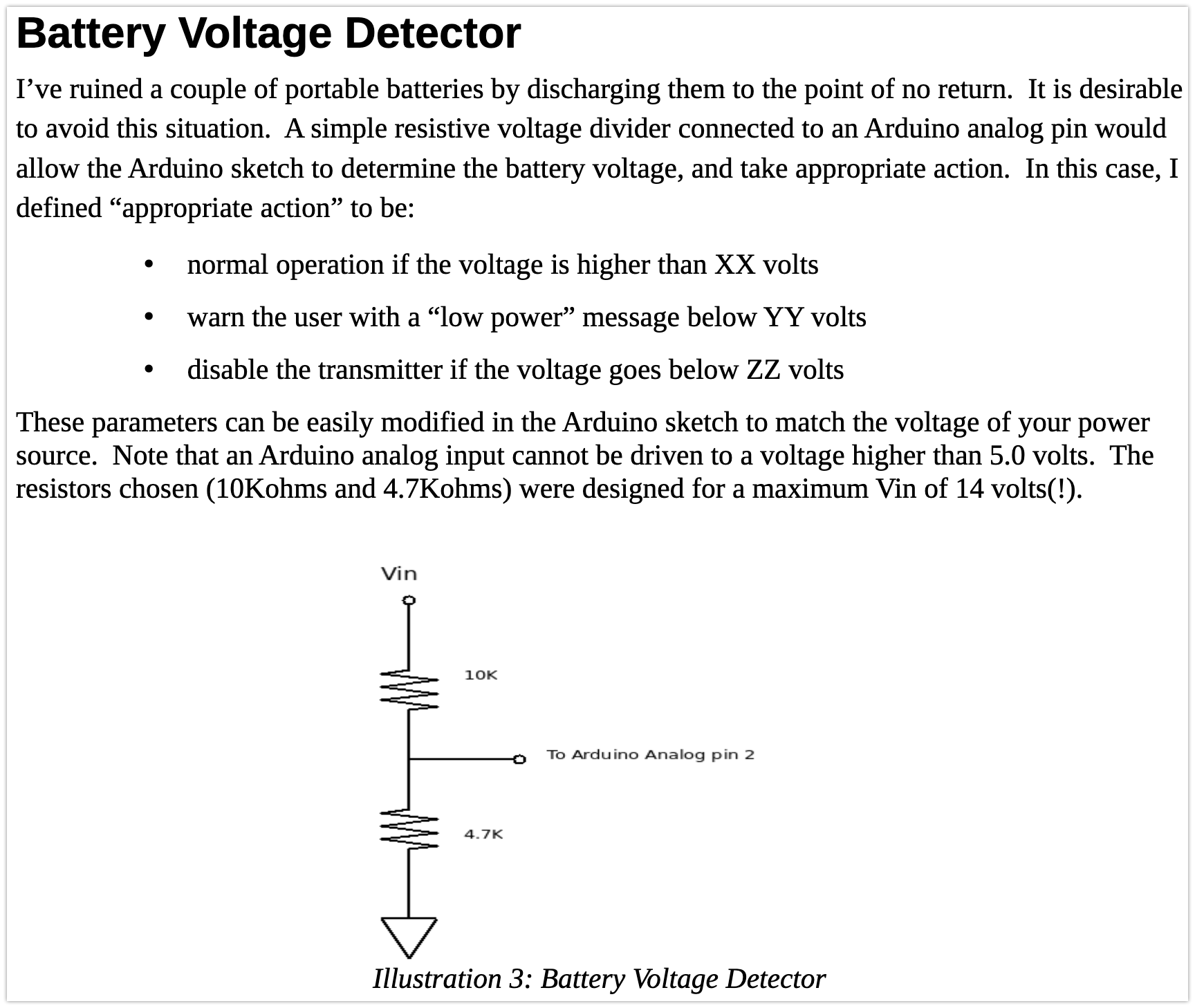

KB1OIQ has discharge protection in his arduino controller: ![image](/attachments/2b81f76a-11ee-4810-9fbf-b95031dee00c) https://master.dl.sourceforge.net/project/kb1oiq-ham-radio-projects/80m_ardf/80m_fox.pdf?viasf=1 If I add a terminal for controller power via VIN (https://olddocs.zerynth.com/latest/official/board.zerynth.doit_esp32/docs/index.html#power), I *think* voltage can be monitored. Can let user do the math on what voltage to not drop below, and enter that value into a field on the webform. Quick search suggests that I would still need a voltage divider circuit (for a different board, but probably similar): https://forum.arduino.cc/t/monitoring-vin-on-a-esp32/894785/4
280 KiB
W1CDN added the enhancementhardware labels 2023-09-17 12:07:22 -05:00
W1CDN changed title from Monitor power and shut down if voltage gets below limit in webform to Monitor power and shut down if voltage gets below limit in webform (software) 2023-11-02 20:55:21 -05:00
W1CDN commented 2023-11-02 20:55:33 -05:00
Author
Owner
Copy Link
Copy Source

Moved hardware part of this question to W1CDN/vulpes_hardware#3.

Moved hardware part of this question to https://amiok.net/gitea/W1CDN/vulpes_hardware/issues/3.
