Handle telemetry #32

New Issue
Open
opened 2023-06-26 11:55:41 -05:00 by W1CDN · 4 comments
W1CDN commented 2023-06-26 11:55:41 -05:00
Owner
Copy link
Copy source

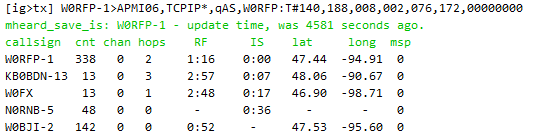

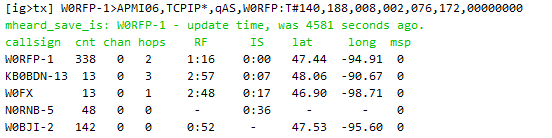

This example is is->rf (for some reason), but the packets from W0RFP-1 seem to have been picked up earlier this morning.

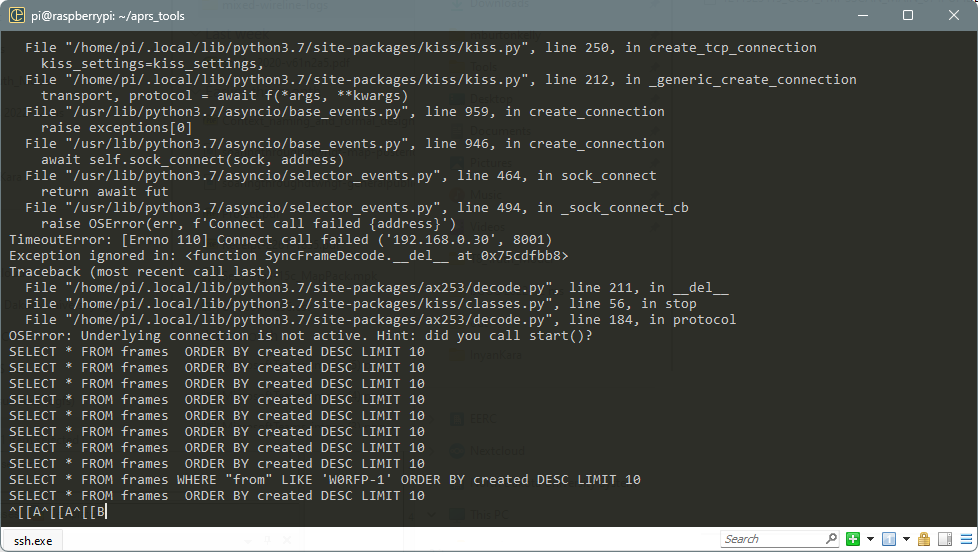

Might be an issue connecting to direwolf?

Hooked up again:

This example is is->rf (for some reason), but the packets from W0RFP-1 seem to have been picked up earlier this morning. ![image](/attachments/09856fd2-3ddf-42a0-8650-05b7f1628383) Might be an issue connecting to direwolf? ![image](/attachments/300c519c-cb63-4710-ab8d-4f11ad693154) Hooked up again: ![image](/attachments/a14bd70b-0b30-4c23-959c-0d0b8feee002)
12 KiB
117 KiB
3.4 KiB
W1CDN commented 2023-06-26 12:09:45 -05:00
Author
Owner
Copy link
Copy source

OK, testing with HT indicates that regular packets are working fine, but telemetry isn't quite. I will have to try faking some incoming telemetry, but that will be difficult without an RF digipeater.

OK, testing with HT indicates that regular packets are working fine, but telemetry isn't quite. I will have to try faking some incoming telemetry, but that will be difficult without an RF digipeater.
matt commented 2023-12-11 10:34:31 -06:00
Copy link
Copy source

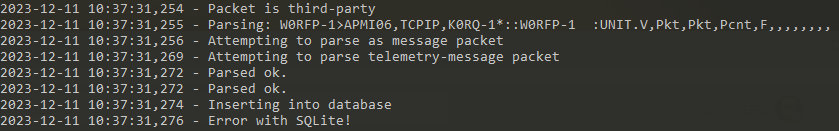

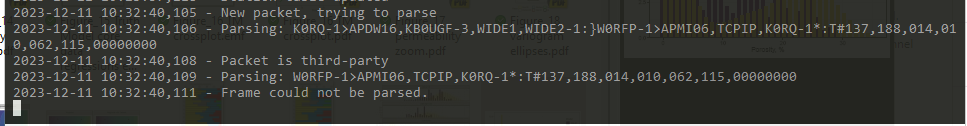

![image](/attachments/64232be1-8acd-4c54-8382-a0968c0c3862) ![image](/attachments/9d6b1fd7-3c0e-4abc-93bb-1d380efbfa78)
38 KiB
22 KiB
matt commented 2023-12-13 11:14:47 -06:00
Copy link
Copy source

I will have to try faking some incoming telemetry, but that will be difficult without an RF digipeater.

Can just pass telemetry packets to aprslib.parse(str(frame)) to test, as long as that's where the errors are.

> I will have to try faking some incoming telemetry, but that will be difficult without an RF digipeater. Can just pass telemetry packets to `aprslib.parse(str(frame))` to test, as long as that's where the errors are.
W1CDN commented 2023-12-14 09:33:41 -06:00
Author
Owner
Copy link
Copy source

Certain telemetry seems to be an issue in aprslib itself:

2023-12-14 09:32:33,808 - New packet, trying to parse
2023-12-14 09:32:33,810 - K0RQ-1>APDW16,KB0UGF-3,WIDE1,WIDE2-1:}W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000
2023-12-14 09:32:33,811 - Parsing: K0RQ-1>APDW16,KB0UGF-3,WIDE1,WIDE2-1:}W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000
2023-12-14 09:32:33,814 - Packet is third-party
2023-12-14 09:32:33,815 - Parsing: W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000
2023-12-14 09:32:33,817 - Error with aprslib:
Traceback (most recent call last):
  File "kiss_and_db.py", line 68, in main
    a = aprslib.parse(str(frame))
  File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 134, in parse
    _try_toparse_body(packet_type, body, parsed)
  File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 167, in _try_toparse_body
    body, result = parse_thirdparty(body)
  File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/thirdparty.py", line 15, in parse_thirdparty
    subpacket = parse(body)
  File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 134, in parse
    _try_toparse_body(packet_type, body, parsed)
  File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 162, in _try_toparse_body
    raise UnknownFormat("Format is not supported: '{}' {}".format(packet_type, unsupported_formats[packet_type]))
aprslib.exceptions.UnknownFormat: Format is not supported: 'T' telemetry report
Certain telemetry seems to be an issue in `aprslib` itself: ``` 2023-12-14 09:32:33,808 - New packet, trying to parse 2023-12-14 09:32:33,810 - K0RQ-1>APDW16,KB0UGF-3,WIDE1,WIDE2-1:}W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000 2023-12-14 09:32:33,811 - Parsing: K0RQ-1>APDW16,KB0UGF-3,WIDE1,WIDE2-1:}W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000 2023-12-14 09:32:33,814 - Packet is third-party 2023-12-14 09:32:33,815 - Parsing: W0RFP-1>APMI06,TCPIP,K0RQ-1*:T#221,188,017,008,068,130,00000000 2023-12-14 09:32:33,817 - Error with aprslib: Traceback (most recent call last): File "kiss_and_db.py", line 68, in main a = aprslib.parse(str(frame)) File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 134, in parse _try_toparse_body(packet_type, body, parsed) File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 167, in _try_toparse_body body, result = parse_thirdparty(body) File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/thirdparty.py", line 15, in parse_thirdparty subpacket = parse(body) File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 134, in parse _try_toparse_body(packet_type, body, parsed) File "/home/pi/.local/lib/python3.7/site-packages/aprslib/parsing/__init__.py", line 162, in _try_toparse_body raise UnknownFormat("Format is not supported: '{}' {}".format(packet_type, unsupported_formats[packet_type])) aprslib.exceptions.UnknownFormat: Format is not supported: 'T' telemetry report ```
